AUDUBON CHAINWEAVE CONVEYOR BELTS
Chain Driven Wire  Mesh Conveyor Belts
Positive Drive Conveyor Belting
Mesh with Chain attached to each edge of conveyor belt.

Chain Weave belts assure positive, true forward movement under the most difficult conditions. Rugged and durable Conveyor Belts.  They are used in heat treating, metalworking, food processing, snack food, ceramics and various other applications. They are efficient in any conveying application where the advantages to positive drive contribute to a more effecient operation.  Conveyor belt tracking and conveyor belt aligntment are simplified with this belt style. The conveying application range is greatly increased by using an Audubon Chainweave Conveyor Belt.

Under moderate temperatures chain drives are very desireable and actually do the driving, the belt itself being used as a conveying medium only.   For high temperature work where chain drive is desirable the belt  is constructed with a chain of special heat resistant alloy.  Practically any link chain or roller chain may be used.
  EXTENDED PITCH ROLLER

Chain            Pitch              Rod Size
C-2040           1"                     .156
C-2042           1"                     .156
C-2052           1 1/4"               .200
C-2062           1 1/2"               .234
C-2080           2"                     .312
C-2082           2"                     .312
C-2102           2 1/2"               .374
Chain          Pitch   Rod Dia
LXS-3013       3"        .438
LXS-4013       4"        .438
LXS-4019       4"        .500
SS-1114          6"        .625-
SS-1116          6"        .562
Chain           Pitch                Rod Dia
442                1.375"                .312
445                1.630"                .312
452                1.506"                .375
455                1.630"                .438
462                1.634"                .438
4062              1.634"                .438
488                2.609"                .438
4102              3.075"                .750
4124              4.063"                .812
Standard or Extended Pitch Roller Chain Conveyor belts are used primarily for handling light and medium loads.  Among typical uses for these positive drive conveyor belts are removal of heat treated parts from quench baths, washing and drying applications and the handling of products in the food processing industry. Listed below are the Roller Chains available for Audubon's Roller Chain Series of Chainweave conveyor Belts.
The Engineering Series Roller Chain conveyor belt is similar to the extended pitch roller chain but is of heavier construction and greater strength. It has greater clearances then precision roller chain and is specifically engineered for use in applications or environments where dirt accumulation or inadequate lubrication may occur.  It is typically used in handling heavy loads in washing and drying, for quench bath operations, for handling heavy stampings and forgings and similar work.

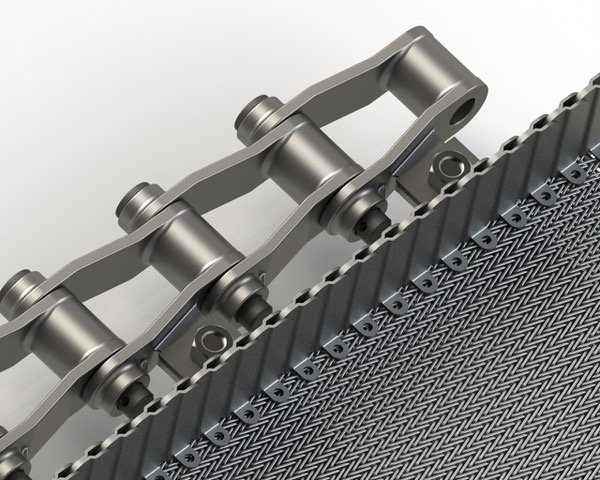

The Pintle Chainweave conveyor belt is used in applications involving product conveyance at moderate speeds in a wide range of process equipments.  It is adaptable to operation at elevated temperatures with miniumum maintenance and for use where dirt or insufficient lubrication may cause problems with other types of chain.  Typical applications for light duty pintle chain include conveying paper ,food products, and light metal parts.  Heavy pintle chain is used  in continuous draw furnaces and for conveying heavy product loads.
PINTLE CHAIN SERIES
CHAINWEAVE CONVEYOR BELTS
ENGINEERING SERIES ROLLER CHAIN
CHAINWEAVE CONVEYOR BELTS
Audubon...the leading wire mesh belt manufacturer for over 100 years.
ROLLER CHAIN SERIES CHAINWEAVE CONVEYOR BELTS
STANDARD ROLLER CHAIN

Chain        Pitch            Rod Size

RC-40          1/2"                .156"
RC-50     .    5/8"                .200"
RC-60          3/4"                .234"
RC-80           1"                  .312"
RC-100        1 1/4"             .375"
RC-120        1 1/2"             .437"
LXS-3013 Chainweave Conveyor Belt  with A-1 attachments every pitch.

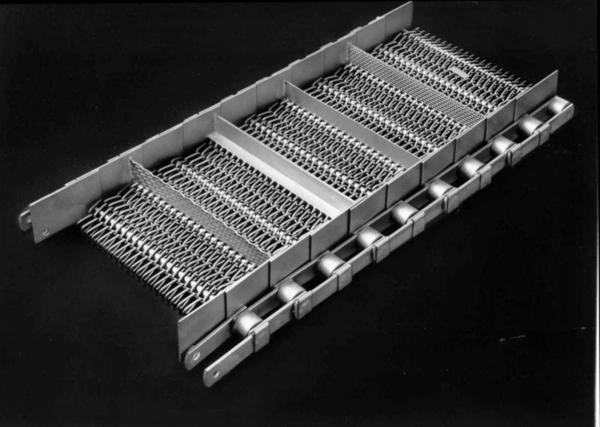

Flights

1. Rigidized Flights
2. Angle Flights
3. Flat flights
4. Mesh Flights

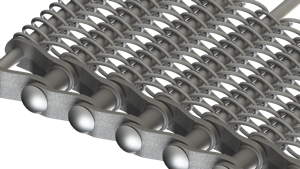

462 Pintle Chain Conveyor Belt with A-12 Attachments

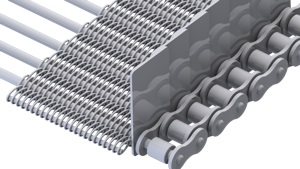

Shingle Type Flexplate Edge shown above
Audubon Chainweave belts are constructed by attaching any of the chain listed below (From our Roller Series, Engineering Roller Series or Pintle Series)  to the sides of any Audubon metal mesh Conveyor Belt.

Bars, angles, channels, rods, pipe or tubing may be passed through or attached to the spiral and fixed to the chain by means of chain accessories or by acting as pins of the chain.

Edges, Dividers and Flights may also be added.

Audubon Chainweave belts are manufactured in house to exacting standards, perfected by over 100 years of experience in manufacturing Audubon Chainweave Conveyor Belts.   Audubon engineers can assist in establishing specifications and can recommend a chain conveyor belt best suited for your specific application.

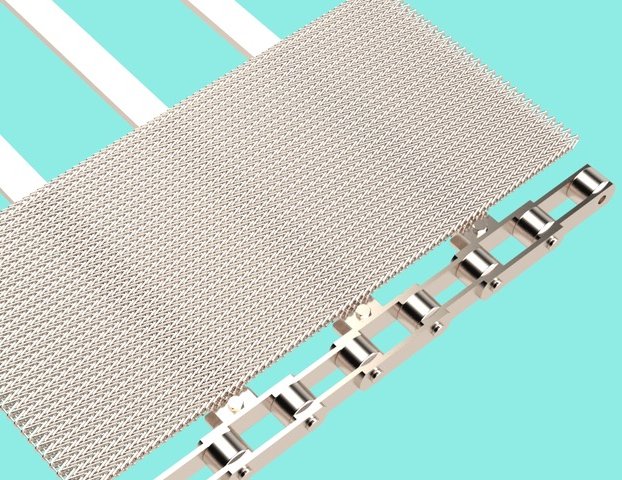

Above roller chains can be combined with any Audubon metal wire mesh to create an Audubon Chain Weave Conveyor Belt.  Standard construction on the roller series  has Audubon Mesh, with a rod inserted through the mesh and the eye of the chain.   If a cordweave mesh (which is a very tightly woven mesh is used)  then attachments are put on the chain, and bars are connected to the chain underneath the mesh, rather than a rod through the mesh.
The Engineering series roller chains to the right  can be combined with any Audubon wire mesh to create an Audubon Chainweave Conveyor Belt.     Standard construction on the engineering roller series uses Audubon Mesh, with a rod inserted through the mesh and the eye of the chain.   If a cordweave mesh (which is a very tightly woven mesh) is used, then attachments are put on the chain, and bars are connected to the chain underneath the mesh, rather than a rod through the mesh construction.
Any of the above Pintle Chains can be combined with any Audubon wire mesh to create an Audubon Pintle Chainweave Conveyor Belt.  Attachments are used quite often in the Pintle Chainweave Series Conveyor Belt.
Click above for a Price on conveyor belt on a  new conveying application and also for a Recommendation based on your conveying application..
Click above for a price on an existing belt that is already in operation.
AUDUBON
850 Pennsylvania Blvd
Feasterville, PA 19053  usa

PH:  (800) 523-0169  Toll Free for usa
PH:  (215) 364-5451  International Calls
Fx:   (215) 364-1783
Email:  info@meshbelt.com
Available Chain with Attachment   Attachment          Support Bar or Channel

ROLLER CHAIN:  RC-40, C-2040, C-2042          A-1                  1/8   X 3/4 BAR
ROLLER CHAIN:  RC-50, C-2050, C-2052          A-1                  3/16 X 3/4 BAR
ROLLER CHAIN:  RC-60, C-2060, C-2062          A-1 or  A-2       1/4 X 1 BAR    or    1 1/4 X 1/2 X 1/8 CHANNEL
ROLLER CHAIN:  RC-80, C-2080, C-2082          A-1 or  A-2       1/4 X 1 BAR    or    1 1/2 X 1/2 X 1/8 CHANNEL

ENGINEERING ROLLER CHAIN:  LXS-3013      A-1                  1/4 X 1 BAR    or     1 1/2 x 1/2 x 1/8 CHANNEL
ENGINEERING ROLLER CHAIN:  LXS-4013      A-1                  1/4 X 1 BAR    or     1 1/2 x 1/2 x 1/8 CHANNEL

PINTLE CHAIN:   445                                       A-1                  3/16 X 1 BAR  or     1 1/4 x 1/2  x 1/8 CHANNEL
PINTLE CHAIN:   462                                       A-12                1/4  x 1 BAR  or      1 1/2 x 1/2 x 1/8 CHANNEL
Many chains are available with attachments.   Bars, Angles, Channels or Pipe can be affixed to these attachments and to support the mesh.   These supports can be plug brazed or welded, bolted, riveted or attached by slings to the mesh.
ATTACHMENTS AVAILABLE FOR CHAIN:
EDGES AND FLIGHTS AVAILABLE:
EDGES:
Mesh Upturned Edges and Plate edges available  (click for available edges)
Availabe in 1" to 5" high

FLIGHTS & DIVIDERS:
Available in height of  your choice, centered per your specifications.  Flight Dividers assist in dividing the product being conveyed. Flight types include rigidized flights, Angle Flights, Flat Flights and wire mesh flights.

Click above for an Audubon Engineer to Recommend a Chainweave Conveyor Belt for your application.
Click above for a price on an existing belt that is in operation.
Example:
Size:       24" OAW X 20 Long Chainweave Conveyor Belt

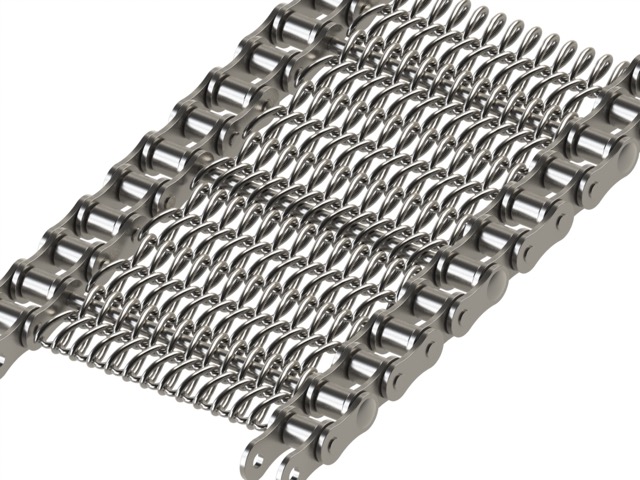

Chain:     RC-40 - 1/2" Pitch Roller chain

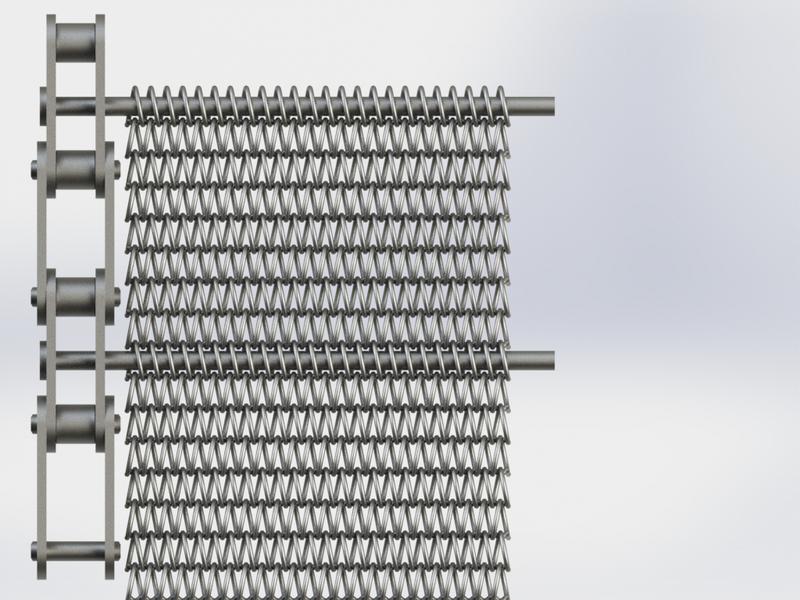

Rods:     .148" Diameter rods thru mesh and eye of chain on 2" centers
Edge:      Welded
Mesh Spec:   B-48-24-16
Metal:      304 Stainless Steel throughout.
Example:
Size:       51" OAW X 48'  Long Chainweave Conveyor Belt
Chain:     LXS-3013 -  3"  Pitch Roller chain with A1  attachments on 3" centers
Channels: 1 1/2 X 1/2 X 1/8 ON 3" CNTR CHANNELS (every pitch of chain)

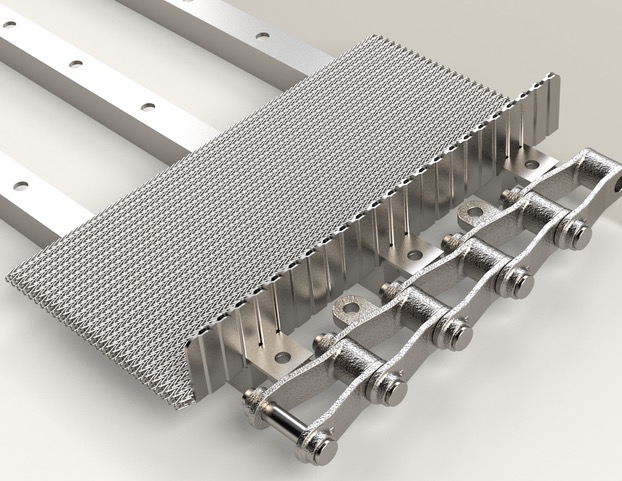

Edge:      3" High Double Flexplate Edge
Mesh:      C-100-2
Metal:      Plain Steel
Example:
Size:       69 3/4" OAW X 100'  Long Chainweave Conveyor Belt
Chain:     445 Pintle Chain - 1.630" centers
Rods:      .312 Rods on 3.260" centers (every other chain pitch)
Edge:      1.5" High Offset  Edge
Mesh:      B-30-14.7-14
Metal:      304 Stainless Steel
Roller Chain Available for the above chain weave conveyor belts: RC40, RC60, RC80, RC100, RC120, C2040,C2042, C2050,C2052,C2060,C2062,C2080, C2082,C2100,C2102
Roller Chain available for our Engineering Series Chainweaves are:  LXS3013, LXS4013, LXS4019, SS114
Pintle Chains available for the above conveyor belt series:  442, 445, 452, 455, 462, 4062, 488, 4102, 4124
FLIGHT STYLES BELOW

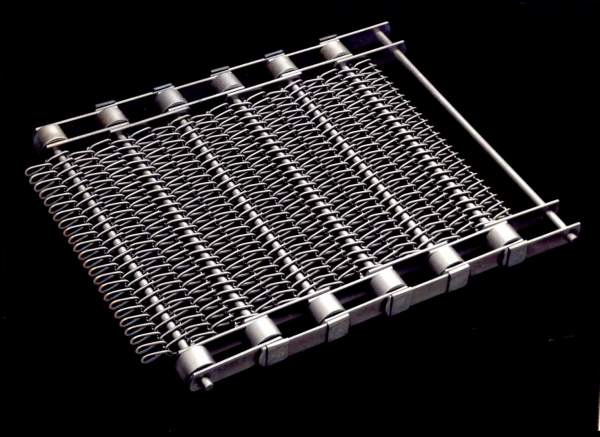

Extended Pitch Chainweave Conveyor Belt Shown above
Engineerng Data on Sprocket and Drum Selection.
