Flatwire  Conveyor Belts For Sod Farming, Harvesting, Agriculture and Aquatic Vegatation Cutting

Flatwire Conveyor Belts provide an open mesh for easy drainage and flow of air, water, soil through the belt and around the product.  This enables easy belt cleaning. Flatwire Conveyor belts are economical and have a long life and smooth operation. Suitable for friction or sprocket drive (see list of sprockets available below).  When selecting a flatwire belt, please consider the product size and the weight of the load. Standard duty is sufficient for most applications, where as Heavy Duty provides extra long life, heavy load capacity and is more suitable for tougher conditions.  Features include flat surface, easily cleanable, endless splicing, positive sprocket drive, easy to replace a section that is damaged or worn down, open for drainage and air circulation.  Materials:   C-1045 High Carbon Steel, Galvanized Low Carbon Steel, 304 and 316 Stainless Steels    ...Sod Belts, Ag Belts, Agriculture Belts, Flatwire conveyor belts..many names, one product.

AUDUBON Sales & Service "Conveyor Belting Since 1884" 850 Pennsylvania Blvd Feasterville, PA 19053 (800) 523-0169  (Toll-Free in U.S.)   (215) 364-5451 Ph   (215) 364-5538  Fx www.meshbelt.com

Available in welded and clinched edge

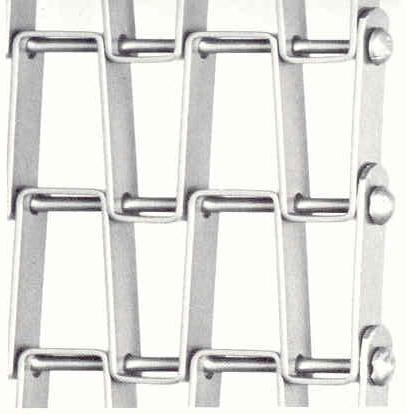

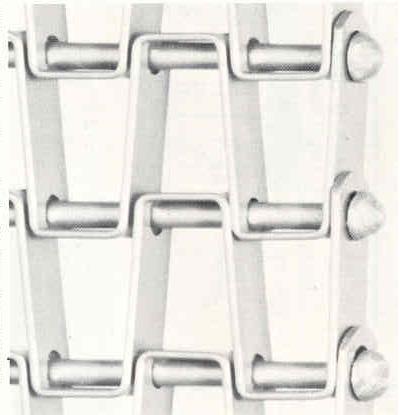

1/2 X 1  STANDARD DUTY   3/8 X .046 wire   11 ga rods 1/2 X 1   HEAVY DUTY         1/2 X .062 wire     6 ga rods

1 X 1 OPENINGS

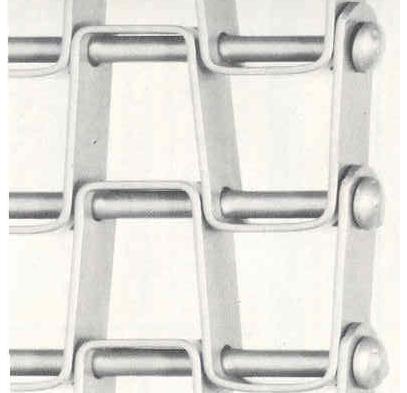

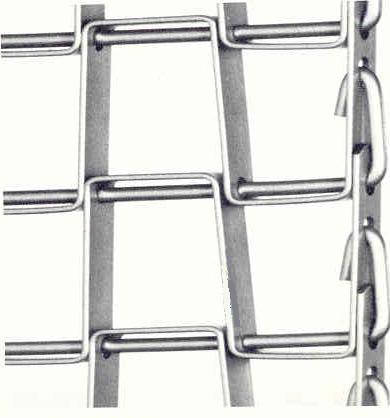

1 X 1 STANDARD DUTY  3/8 X .046 wire, 11 ga rods 1 X 1 HEAVY DUTY        1/2 X .062 wire,  6 ga rods

1/2 X 1 OPENINGS

1/2X 1/2 OPENINGS

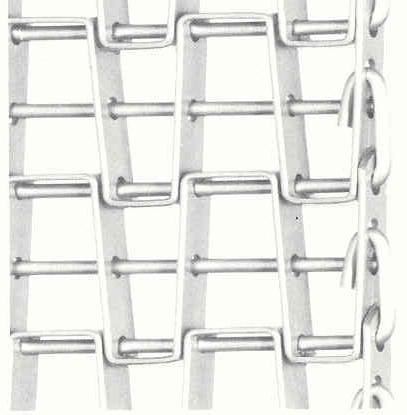

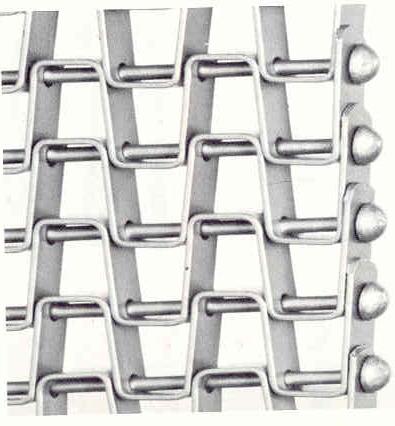

1/2 X 1/2 TRUE  STANDARD DUTY           3/8 X .046 wire    11 ga rods 1/2 X 1 Modified STANDARD DUTY       3/8 X .046 wire    11 ga rods  1/2 X 1 Modified HEAVY DUTY              1/2 X .062 wire      6 ga rods

All of the above available in welded edge Clinched Edge is only available in 1/2 x 1 Modified

Available in welded and clinched edge
