Spiral Grid Conveyor Belts

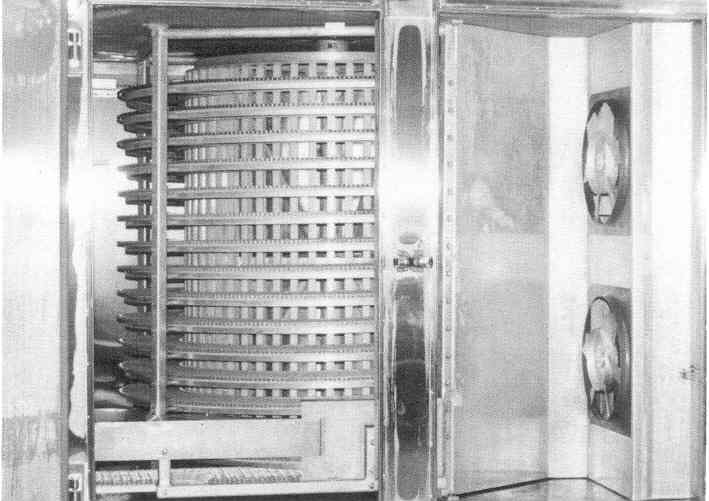

Spiral Grid Belts are used in both applications that require a curved path or a straight lineal path. Popular in cookers, transfers, coolers, dryers, freezer tunnels and more. Audubon Grid Link Spiral Belts are available in 3/4" Pitch or 1" Pitch Links. The mesh consists of balance weave spirals. and a 6 gauge cross rod each pitch. The spirals allows for tighter weaves and more choices regarding opening size than flat wire styles offer.
If your belt requires a turn radius, the standard inside radius is 2.2 times the width of your belt.
Are you currently using an Omni Grid or a Cam Grid conveyor belt? If so contact sales representative, Marty Due, for more information and a comparison quote.
