Lehr Belts

Wire mesh conveyor belts by Audubon

The Audubon LEHR BELT is the industry standard in the glass industry.  Audubon has been manufacturing for over a hundred years.  Our belts are made with the highest industry standards giving you a long life on your Lehr Belt...REDUCING your downtime and money. Our Lehr Belt offers: Good Tracking Smooth Conveying Surface Longer Belt Life (less belt stretch) Listed below are some standard Lehr Belt Specifications.  We manufacture in any specification you require...Audubon Engineers can recommend the proper belt spec for your application.

Designation B-18-16-12/14 B-30-18-10/12 B-30-24-11 B-30-30-12/14 B-36-20-12 B-36-20-10/12 B-42-27-14 B-48-26-12/14

Wire Dia .105 - .080"          .135 - .105"              .120"               .105 - .080"              .105"                 .135 - .105"              .080"  .            .105 - .080"

lbs/sq.ft. 1.44 3.48 5.10 4.30 3.80 4.20 2.63 3.85

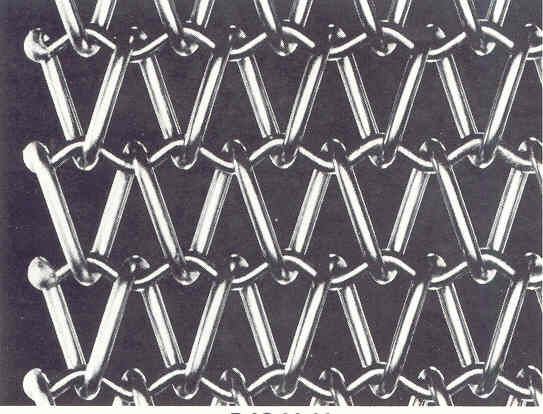

B-18-16-12

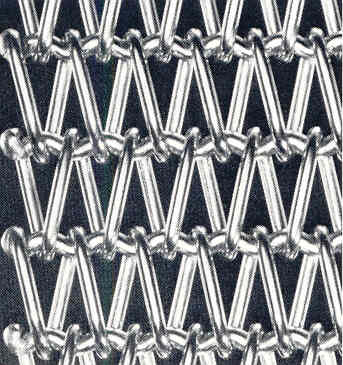

B-30-18-10/12

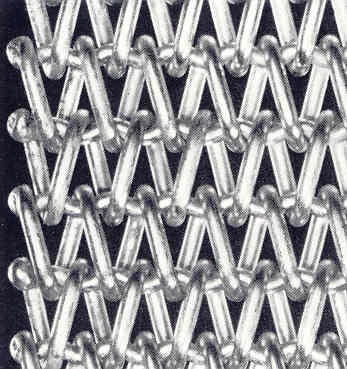

B-30-24-11

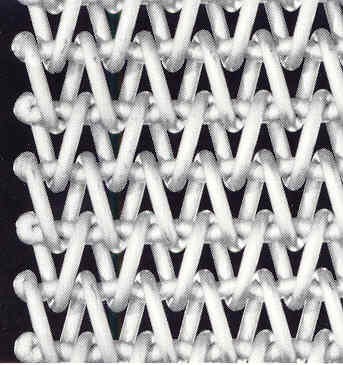

B-30-30-11/12

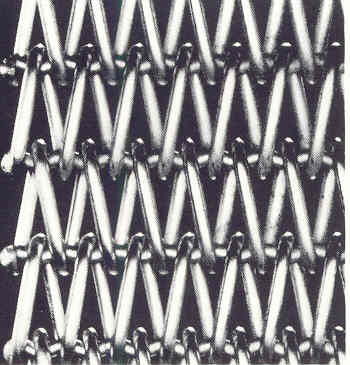

B-36-20-12

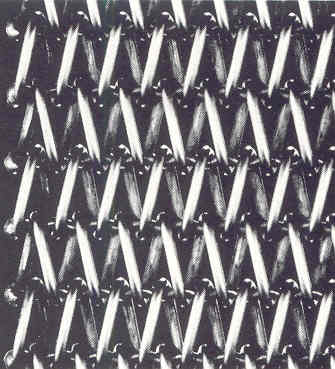

B-42-27-14

AUDUBON...the leader in conveyor belt manufacturing
