FLATWIRE FLIGHTS
FLIGHT CLIPS FOR AUDUBON FLATWIRE BELTING

   1/2 X 1/2 True             1/2 X 1  and  1 X  1         1/2 X 1  and 1 x 1
STD DUTY CLIPS.          STD DUTY BELTS       HEAVY DUTY BELTS
    .105" thick                                  .120" thick

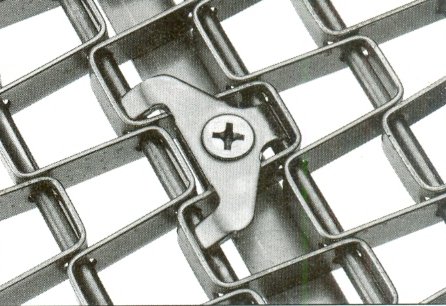

Angle Flight for Flatwire (underside)

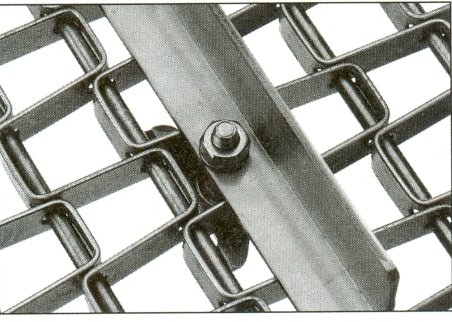

Angle Flight for Flatwire  (Top Side).
Flight Clip Material: Available in 304 Stainless Steel and Plated Steel
Flight Clip Optons:   Available with the accessories shown above (flex nut, flat head bolt, lock washer).
                                1/2 x 1/2 belts are supplied with an allen head screw that should be tack welded to the clip.


Flights can be attached to the belt by flight clip or by welding.

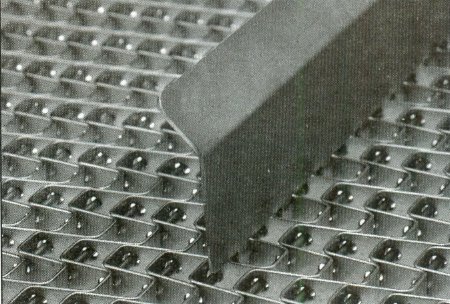

Tab Style Flight
FLATWIRE ATTACHMENTS

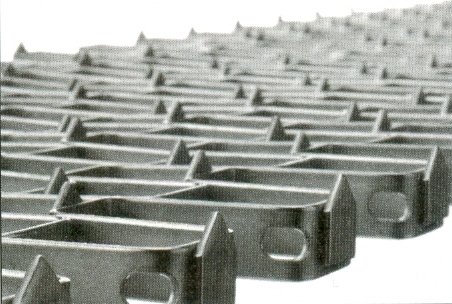

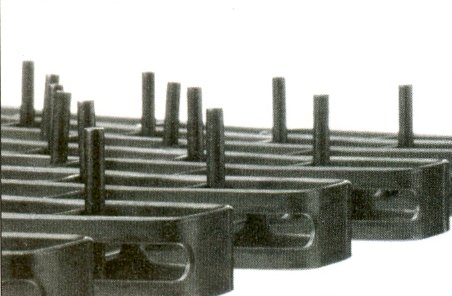

PIn Up Attachments for Flatwire Belting                           Roof Top Attachments for Flatwire Belting
