Flatwire Conveyor Belts provide an open mesh for easy drainage and flow of air, gases or liquids through the belt and around the product.  This enables easy belt cleaning. Flatwire is economical with a long life and smooth operation. Suitable for friction or sprocket drive (see list of sprockets available below).  When selecting a flatwire belt, please consider the product size and the weight of the load. Standard duty is sufficient for most applications, whereas Heavy Duty provides extra long life, heavy load capacity and for tougher conditions. Features include flat surface, easily cleanable, endless splicing, positive sprocket drive, easy to replace a section that is damaged or worn down, open for drainage and air circulation.  They are used in some of the following applications:  food processing, canning, baking,  freezing, agricultural applications, farming, as well as Parts washing, drying, cleaning, painting, drying, transferring; also used as matting and drag mats. Accessories available:  Flight Clips and Special Attachments, Lane Dividers, Edge Gaurds, Pin Up attachments,  Materials:   C-1045 High Carbon Steel, Galvanized Low Carbon Steel, 304 and 316 Stainless Steels

AUDUBON Flatwire  Conveyor Belts

Flatwire Conveyor Belts provide an open mesh for easy drainage and flow of air, gases or liquids through the belt and around the product.  This enables easy belt cleaning. Flatwire is economical with a long life and smooth operation. Suitable for friction or sprocket drive (see list of sprockets available below).  When selecting a flatwire belt, please consider the product size and the weight of the load. Standard duty is sufficient for most applications, whereas Heavy Duty provides extra long life, heavy load capacity and for tougher conditions. Features include flat surface, easily cleanable, endless splicing, positive sprocket drive, easy to replace a section that is damaged or worn down, open for drainage and air circulation.  They are used in some of the following applications:  food processing, canning, baking,  freezing, agricultural applications, farming, as well as Parts washing, drying, cleaning, painting, drying, transferring; also used as matting and drag mats. Accessories available:  Flight Clips and Special Attachments, Lane Dividers, Edge Gaurds, Pin Up attachments,  Materials:   C-1045 High Carbon Steel, Galvanized Low Carbon Steel, 304 and 316 Stainless Steels

AUDUBON Sales & Service "Conveyor Belting Since 1884" 850 Pennsylvania Blvd Feasterville, PA 19053 (800) 523-0169  (Toll-Free in U.S.)   (215) 364-5451 Ph   (215) 364-5538  Fx

Nom.     #                           Dia.    Teeth       Matl               4         13      Cast Iron            4         13       Plastic            4         13      Stainless           4         13      Cast Iron            6         18      Cast Iron           6         18      Cast Iron         6         18        Plastic            6         18      Stainless          6         18      Cast Iron   8         23      Cast Iron   8         23      Cast Iron   8         23        Plastic 10         31       Cast Iron 10         31       Cast Iron 12         37       Cast Iron 12         37       Cast Iron

Pitch         Dia (in)       4.35      4.35             4.35          4.35 6.16 6.16 6.16 6.16 6.16 7.87 7.87 7.87 10.65 10.65 12.68 12.68

Hub Dia 2 1/2 None None None 3 1/4 5 4 3 3 1/2 4 1/2 5 1/2 5 4 1/2 5 1/2 5 6

Bore Min   .75   .75   .75   .75   .75 2.75   .75   .75 1.00 1.00 3.00 1.00 1.25 3.0 1.4375 1.4375

Bore Max     1.9375   2.50   2.50   2.00   2.75   3.50   2.50   2.50   2.50   3.00   4.50   3.00   3.00   4.50   3.50   4.50

Sprockets for Standard Duty Belts

Sprockets for Heavy Duty Belts

Nom.     #                           Dia.    Teeth       Matl               4         13      Cast Iron            4         13       Plastic           6         18      Cast Iron           6         18      Cast Iron         6         18        Plastic            6         18      Stainless          8         23      Cast Iron   8         23      Cast Iron   8         23        Plastic   8         23       Stainless 10         31       Cast Iron 10         31        Plastic 12         37       Cast Iron

Pitch         Dia (in)        4.390   4.390   6.190   6.190   6.190   6.190   7.910   7.910   7.910   7.910 10.680 10.680 12.720

Hub Dia 2 3/4 None   4   5   4 3 1/2 4 1/2 5 1/2   5 3 1/2 5 1/2   5 5 1/2

Bore Min 0.75 0.75 1.00 2.50 0.75 0.75 1.00 3.00 1.00 1.00 1.25 1.00 1.50

Bore Max 2.00 2.50 2.75 3.50 2.50 2.50 3.00 4.50 3.00 3.00 3.75 3.75 3.75

Machined Tooth Sprockets also available.

www.meshbelt.com

Available in welded and clinched edge

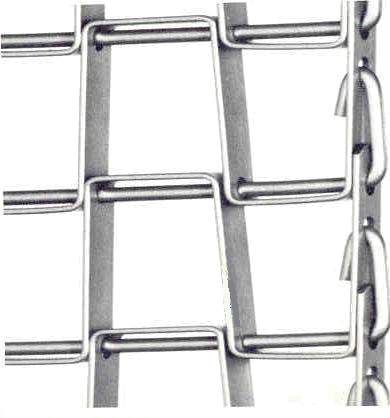

1/2 X 1  STANDARD DUTY   3/8 X .046 wire   11 ga rods 1/2 X 1   HEAVY DUTY         1/2 X .062 wire     6 ga rods

1 X 1 OPENINGS

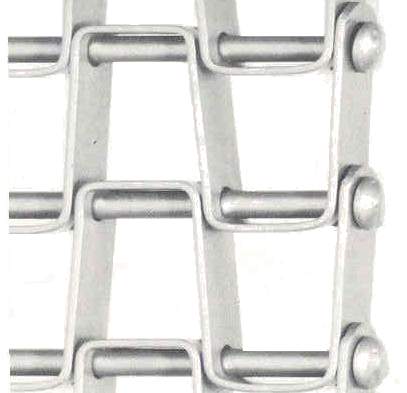

1 X 1 STANDARD DUTY  3/8 X .046 wire, 11 ga rods 1 X 1 HEAVY DUTY        1/2 X .062 wire,  6 ga rods

1/2 X 1 OPENINGS

1/2X 1/2 OPENINGS

1/2 X 1/2 TRUE  STANDARD DUTY           3/8 X .046 wire    11 ga rods 1/2 X 1 Modified STANDARD DUTY       3/8 X .046 wire    11 ga rods  1/2 X 1 Modified HEAVY DUTY              1/2 X .062 wire      6 ga rods

All of the above available in welded edge Clinched Edge is only available in 1/2 x 1 Modified

Available in welded and clinched edge

">

">

">

">

">

">

">

">

SPROCKETS AVAILABLE:
